In the rapidly evolving world of additive manufacturing, one technology is defining the future of metal production: Selective Laser Melting (SLM). Whether you’re an engineer designing aerospace components, a startup exploring advanced tooling, or simply curious about how metal parts can be 3D printed, understanding the SLM 3D printing process gives you the power to harness it intelligently, optimize for performance and cost, and choose the right service.
Let’s break down the complete SLM metal 3D printing process step-by-step from the digital model to a finished, high-performance metal part.
What is SLM 3D Printing?

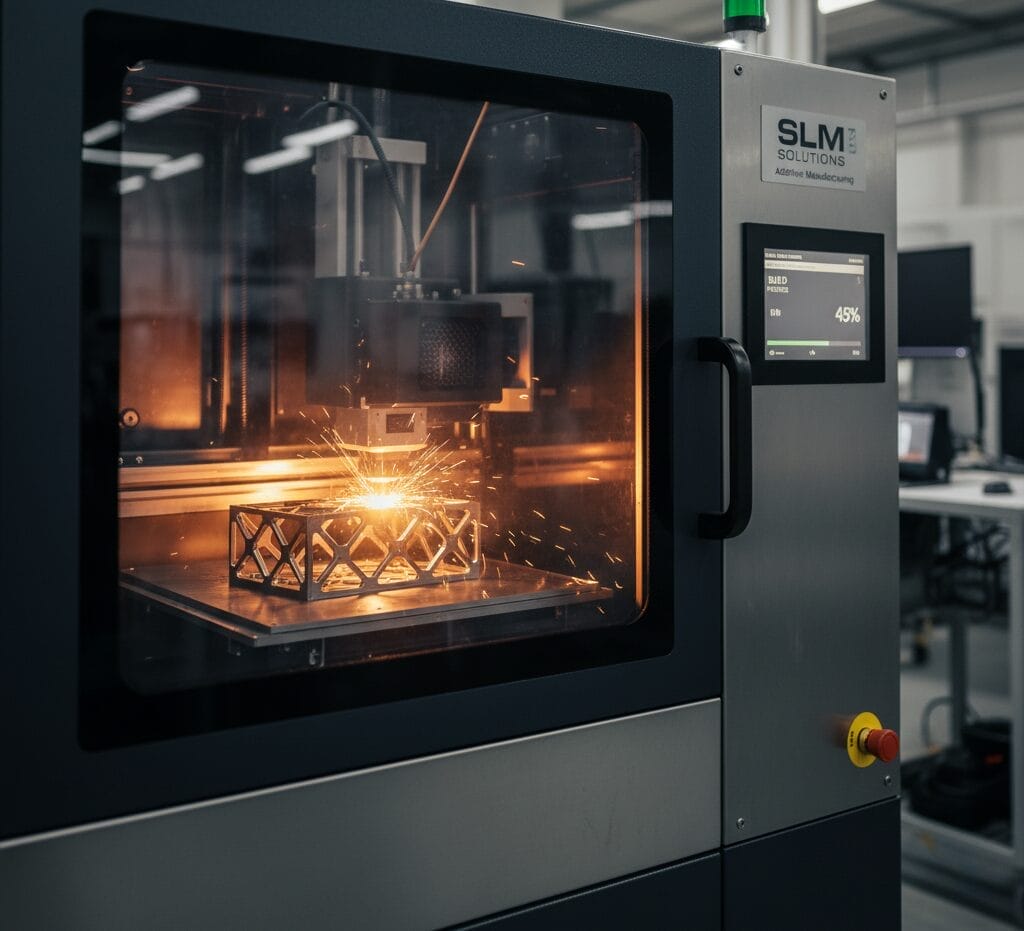

SLM (selective laser melting) is a metal additive manufacturing 3D printing technology whereby fine metal powder is completely melted layer by layer using a high-power laser, building up complex metal parts directly from digital designs.
In simpler terms: imagine spreading a very thin layer of metal powder, then the laser “draws” the cross-section of your part by melting exactly where the geometry requires. Then another powder layer is added, melted again, and the cycle repeats until your 3D object is complete.
Historically, SLM emerged from the powder bed fusion family of additive manufacturing techniques, with early research showing up at the Fraunhofer Institute for Laser Technology (ILT) in Germany.
Because SLM fully melts the metal (rather than merely sintering), it can produce parts with very high density and excellent mechanical properties.
The Core Principle
At the heart of the SLM 3D printing technology lies three core ideas:
- Powder bed deposition: Spreading a thin layer of metal powder across a build platform.
- Laser melting: A high-power laser selectively scans and melts the powder according to the cross-section geometry of the part.
- Layer-by-layer stacking: Once one layer is done, the platform lowers (or the powder recoater spreads another layer) and the process repeats until the entire geometry is built.
Put simply, the digital design → sliced layers → laser melts each layer → build progresses vertically until complete. Because the powder is melted, the final parts can approach full density (near 100 %) and demonstrate strong mechanical performance.
The Complete SLM 3D Printing Process
Let’s walk through the full journey of using SLM metal 3D printing (also phrased as an “SLM 3D printing service”) from concept to final metal part.
Design the 3D Model
Everything starts with a digital CAD model (created in software like SolidWorks, Siemens NX, or similar). But when designing for SLM, you must think beyond simply shape: you should ensure the model is:
- Watertight: no gaps, holes or non-manifold geometry.
- Scaled and oriented for the build volume of the SLM machine.
- Designed with printability in mind: for example minimizing unnecessary large unsupported overhangs, and considering support structures, heat/warpage issues, and accessibility of internal channels.
You’ll export your model in a standard 3D-printable format such as .STL or .3MF (though for metal services, sometimes proprietary formats are accepted).
Slicing & Setup for Metal Powder
In the slicing stage, the 3D model is processed into layers and tool-paths for the machine:
- The model is oriented for optimal part performance (e.g., to align critical load axes, reduce supports, minimize build time).
- Supports are defined (in metal printing these are often essential to anchor part, control thermal distortion, and conduct heat away).
- Key parameters are chosen: layer thickness (often 20–50 µm in metal SLM), scan strategy, laser power, powder layer thickness, and build plate temperature.
- The slicing software generates the build job for the machine (including powder spread, laser paths, support zones and so on).
Machine Preparation (Printer Preparation)
Before printing begins on the SLM machine:
- The build chamber is preheated and purged, typically with an inert gas such as argon or nitrogen to avoid oxidation of molten metal.
- A build plate is fitted and cleaned, powder loaded, and safety protocols verified (metal powder handling is more hazardous than typical filament or resin).
- The powder recoater/blade system, laser optics, and gas flow are set up and calibrated.
- The metal powder is spread into a thin uniform layer across the platform (the recoater may deposit e.g. 20–50 µm thick layers).
The Printing Process
Here’s the core “SLM 3D printing process” in action:
- A layer of metal powder is laid down.
- The laser scans the defined cross-section of that layer, melting and fusing the powder particles into a solid metal region.
- Once the scan is complete, the build platform or powder system lowers slightly, and a fresh layer of powder is spread.
- The next layer is scanned and melted, fusing to the layer below. This repeats until the full part is built.
- Because the part is anchored (via supports) to the build plate and the chamber is controlled for temperature and gas environment, high precision and density can be achieved.
- Build time for SLM can vary widely depending on part size, complexity, layer thickness, and machine productivity but expect many hours to days for large complex metal parts.
Post-Processing
Once the print job completes:
- The chamber cools down; the part is still embedded in loose powder which must be removed (sometimes via blasting, sieving of unused powder, etc.).
- Support structures are removed (cut off, machined away) and the part may undergo heat treatment (stress relief, annealing) to reduce residual stresses and improve mechanical properties.
- Surface finishing may be applied: machining, polishing, blasting, coating depending on final use.
- Final dimensional accuracy and properties are verified because SLM parts are often to be used in critical applications (aerospace, medical, tooling).
- Finally, the part is ready for functional use, whether as a functional end-use component or a prototype for testing.
Common SLM Metal 3D Printing Materials and Their Uses
One reason why many companies turn to SLM metal 3D printing is the wide range of metal and alloy powders available. Below is a snapshot:
Selecting the right powder depends on your application, environment, required mechanical properties, and machine capability (some machines only support certain powders with certified parameter sets).
Key Parameters That Affect Print Quality
Mastering SLM 3D printing technology means tuning many interdependent parameters. Here are some of the most crucial ones:
- Laser Power & Scan Speed: Too low → incomplete melting, porosity; too high → excessive heat, distortion.
- Layer Thickness: Fine layers (e.g., 20 µm) yield better surface and detail; thicker layers lead to faster builds but rougher finish.
- Powder Quality & Particle Size: Uniform, flowable powder leads to better layer lay-down and melting behaviour.
- Build Plate Temperature / Pre-heat: Helps reduce thermal gradients, warping and residual stress.
- Inert Gas Atmosphere: Using argon/nitrogen to prevent oxidation of molten metal.
- Support Structure Design: Proper supports anchor the part, provide heat conduction away from molten zones, and reduce warpage.
- Scan Strategy / Overlap / Hatch Spacing: The pattern the laser takes when scanning affects residual stress, microstructure and material properties.
- Post-Processing (Heat Treatment, Machining): While not strictly during printing, this significantly affects final strength, accuracy and finish.
Advantages of SLM 3D Printing
The benefits of adopting SLM 3D printing service (for metal parts) are strong and often industry-defining:
Complex Geometry Freedom:
SLM enables internal channels, lattice structures, topological optimisation, part consolidation (reducing assemblies) – all impossible or highly costly with traditional manufacturing.
High Density & Performance:
Because SLM fully melts powder, parts can have material properties similar to wrought/forged metals – great for functional, load-bearing applications.
Reduced Lead Time & Customisation:
Compared to conventional tooling, the ability to print metal parts quickly means shorter development cycles, greater agility in custom or low-volume production.
Material Efficiency & Less Waste:
In powder-bed systems, unused powder can often be recycled (depending on material) and fewer machining/waste operations are required.
Service Availability:
Many firms now offer SLM 3D printing services, meaning you don’t need to own the machine; you can upload your design and get a quote, making it accessible to more users.
Limitations of SLM 3D Printing
For balance, it’s important to recognise the challenges when using metal SLM printing:
High Equipment & Powder Cost:
Metal powders and SLM machines are expensive; the cost per part is currently higher than many conventional processes for large volumes.
Build Size Limitations:
While machines are growing, typical build volumes are still smaller compared to large-scale casting or forging. Orientation and nesting constraints apply.
Residual Stress, Warping & Distortion:
The high thermal gradients and melting cycles introduce stresses that must be managed via support structures, pre-heating and post-processing.
Surface Finish & Machining Required:
Even though SLM parts are functional, many applications require post-machining or finishing to meet surface, tolerance, or fatigue requirements.
Material & Process Certification:
For regulated industries (aerospace, medical) the qualification of material, machine, and process is onerous and still evolving.
FAQs
Why is SLM 3D printing technology preferred for metal parts?
SLM 3D printing technology is preferred because it produces dense, durable, and high-precision metal parts directly from digital designs. It’s ideal for industries that require complex geometries and top-tier material strength, such as aerospace and medical manufacturing.
What is SLM in 3D printing?
SLM (Selective Laser Melting) is a metal 3D printing technology that uses a powerful laser to completely melt fine metal powder, layer by layer, creating fully dense and high-strength metal parts used in aerospace, automotive, and medical fields.
How does the SLM 3D printing process work?
In the SLM 3D printing process, a thin layer of metal powder is spread on the build plate and selectively melted by a laser based on the digital design. The process repeats for each layer until the part is complete, followed by cooling, support removal, and post-processing.
